Heavy Duty Small Port Ball Valve
Three-piece heavy-duty design engineered for NPS 1/2"–2" (DN15–50) piping systems. API 608 certified, fire-safe to API 607, and built for 25+ years of trouble-free operation.
What Is a Heavy Duty Small Port Ball Valve?
CARILO's three-piece heavy-duty small-bore ball valve delivers premium performance across a wide range of industrial services. Designed for easy inline maintenance and extended, trouble-free operation, this resilient-seated ball valve combines advanced engineering features to ensure superior reliability at a cost-effective price point.
Compliant with API 608 and certified to ISO 15848-2 fugitive emission standards, these valves meet the most demanding industry requirements for safety and environmental performance in Oil & Gas, Refining, Power Generation, and Hydraulic Instrumentation systems.
- Three-piece body design for inline maintenance without pipe removal
- Heavy-duty construction rated for Class 800 (PN130) applications
- Mirror-finished solid stainless ball for bubble-tight sealing
- Full-bore and reduce-bore options available
- Soft seat and metal seat configurations for varied temperature ranges
7 Engineering Features Built Into Every Valve
Each valve is engineered with precision-machined components to deliver reliable, long-cycle performance in demanding industrial environments.
Fire-Safe to API 607
Tested and certified to API 607 standard for fire-safe design. Ensures reliable seating integrity even under fire exposure conditions, critical for Oil & Gas and petrochemical plant safety systems.
Mirror-Finished Solid Stainless Ball
Precision-ground and mirror-polished solid stainless steel ball provides bubble-tight shutoff with minimal torque requirement. The solid construction eliminates surface defects that cause premature seat wear.
Soft & Metal Seat Available
Choose between reinforced PTFE soft seats for standard service up to 200°C or metal-to-metal seats for high-temperature applications up to 350°C. Both options provide exceptional sealing performance.
Cavity Pressure Relief Mechanism
Integrated cavity pressure relief ports automatically vent trapped body cavity pressure, preventing seat damage during thermal cycling. Essential for steam and thermal oil applications.
Blowout-Proof Stem
Heavy-duty stems with positive blowout prevention meet API 608 requirements. The stem-to-ball connection is designed to withstand maximum torque loads without deformation or leakage.
Antistatic Feature
Built-in static grounding path between ball, stem, and body prevents dangerous static charge buildup in flammable service. Meets API 608 antistatic requirements for safe operation in explosive atmospheres.
ISO 5211 Actuator Mounting
Precision-machined ISO 5211 topworks interface enables direct mounting of pneumatic, electric, or hydraulic actuators. Eliminates bracket-and-coupling hardware for a cleaner, more compact assembly.
Complete Specifications
| Parameter | Specification |
|---|---|
| Size Range | NPS 1/2" – 2" (DN15 – DN50) |
| Pressure Class | ASME Class 150 / 300 / 600 / 800 |
| Connection Ends | Socket Weld (SW), Butt Weld (BW), Threaded (NPT) |
| Port Type | Full-Bore (FB) / Reduce-Bore (RB) |
| Body Material | Carbon Steel (A105/WCB), Stainless Steel (F304/F316), Duplex SS (F51/F55) |
| Ball Material | ASTM A182 F304/F316/F51, overlaid for hard sealing |
| Seat Material | Reinforced PTFE, PEEK, DEVLON, NYLON, Metal-to-Metal |
| Stem Material | ASTM A182 F6a, F51, XM-19, 304/316 SS, Inconel 718 |
| Temperature Range | -29°C to +350°C (depending on seat material) |
| Certifications | API 608, API 607 Fire-Safe, ISO 15848-2, ASME B16.34 |
| Face-to-Face | ASME B16.10 (short pattern for space-constrained installations) |
| Coatings | Custom on request |

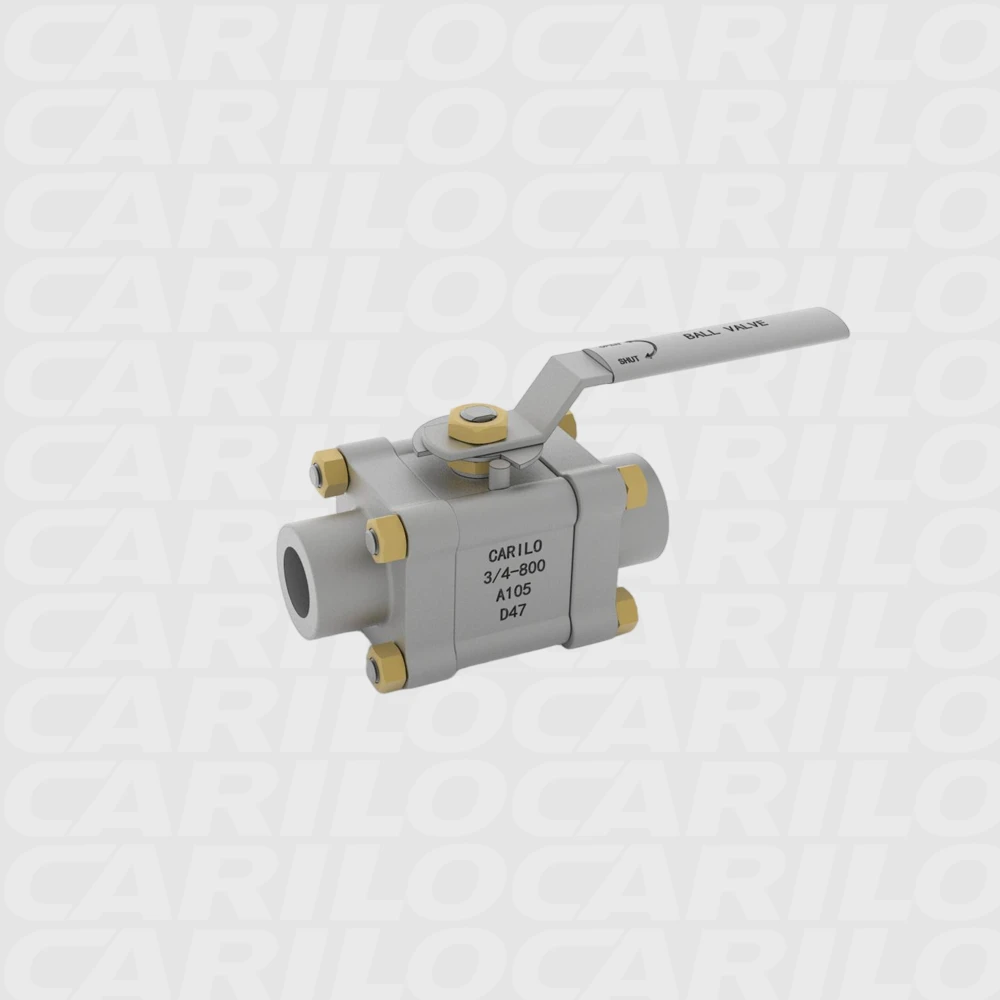

CARILO Three-Piece Small Port Ball Valve — Dimensional Overview
Where Heavy Duty Small Port Valves Excel
Engineered for reliability across demanding industrial sectors — from upstream production to power generation and hydraulic instrumentation.
Oil & Gas
Production gathering lines, wellhead instrumentation, chemical injection systems, and platform process piping where small-bore shutoff is critical.
Refining & Petrochemical
Refinery process units, catalyst transfer lines, acid and caustic service, steam tracing, and fugitive emission-critical process isolation points.
Power Generation
Thermal and coal-fired power plant condensate systems, feedwater heating, lube oil circuits, and instrument air headers where reliable isolation is mandatory.
Hydraulic & Instrumentation
High-pressure hydraulic control systems, instrument impulse lines, gauge root valves, and pneumatic instrumentation where NPS 1/4"–2" isolation is required.
From Specification to Shipment in 4 Steps
A streamlined sourcing process designed for industrial buyers who need fast, reliable turnaround on API-certified ball valves.
Specification Review & Technical Confirmation
Share your line size, pressure class, temperature, medium, and application. Our engineers confirm the correct material grade, seat configuration, and connection type. Typical technical confirmation within 24 hours. We verify API 608 compliance, NACE MR0175 requirements for H₂S service, and fire-safe certification needs.
Custom Manufacturing
Each valve is machined to order in our Wenzhou facility. ASTM A105 carbon steel forgings are upset and pierced to create the three-piece body — a process that produces 17% higher tensile strength than casting. Ball surfaces are precision-ground and mirror-polished. 0.01mm CNC machining tolerance ensures consistent torque and seat compression.
Quality Testing & Certification
Every valve passes API 598 shell test at 1.5× rated pressure and seat test at 1.1× rated pressure. Low-temperature Charpy impact testing (CVN ≥27J average) available for cryogenic applications. Material certificates EN 10204 3.1 provided with every valve. Certificates of Conformity issued per batch.
Export Packing & Global Delivery
Valves are individually wrapped in VCI anti-corrosion film, boxed in reinforced wooden crates ISPM 15-compliant for international export. Door-to-door logistics coordination available. Typical lead time: 4–8 weeks for standard configurations. Express manufacturing for urgent shutdown requirements.
6 Reasons Industrial Buyers Specify CARILO
Inline Maintenance Design
Three-piece body enables the valve to be disassembled for seat replacement, ball polishing, and stem packing changes without removing the valve from the pipeline — reducing maintenance downtime by up to 70%.
Class 800 Capability
Rated for ASME Class 800 (PN130 / 13.1 MPa) — significantly higher than typical small-bore valves limited to Class 600. Handles high-pressure hydraulic instrumentation and steam applications with full safety margin.
Three Connection Types
Socket Weld, Butt Weld, and Threaded ends available in a single product family — no need to source from different manufacturers. NPT/BSPT threaded ends available for Class 300 and below, 2-inch and smaller carbon steel pipe.
API & ISO Certified
API 608 product certification, API 607 fire-safe, ISO 15848-2 fugitive emission, ASME B16.34, NACE MR0175 — full compliance documentation package included. Third-party inspection by SGS, Bureau Veritas, or Lloyd's available.
Custom OEM & Private Label
Custom OEM services include material upgrades (super austenitic SS, Inconel 625/825 for sour service), custom port configurations, proprietary stem designs, and private label marking with customer brand, TAG numbers, and project-specific part numbers.
Fast Production & Express Lead Times
Standard lead time: 4–8 weeks. Express manufacturing available for urgent shutdown and turnaround projects. Compare our lead time against the industry average of 12–16 weeks for comparable API 608 forged ball valves.
Industry Standards & Compliance
Every CARILO valve ships with complete compliance documentation. Each standard below is verified by test and certification — giving engineering firms and project buyers the documented assurance they need for plant acceptance and regulatory compliance.
API 608 — Steel Ball Valves
The definitive product specification for steel ball valves in petroleum and refinery service. API 608 defines pressure-temperature ratings per ASME B16.34, shell and seat test requirements at 1.5× and 1.1× MAWP respectively, face-to-face dimensions per ASME B16.10, and mandatory nameplate traceability. Every CARILO three-piece small port valve is API 608 certified as standard.
API 607 — Fire-Safe Design
Fire-safe testing confirms the valve will not create a flame path through the body or stem interface if exposed to a 650°C fire for 30 minutes — the primary hazard in hydrocarbon processing environments. After fire exposure, both soft-seat and metal-seat configurations must re-seal. All CARILO three-piece valves are API 607 certified for both seat types.
ISO 15848-2 — Fugitive Emissions
ISO 15848-2 classifies valve fugitive emission performance across three endurance classes. CARILO valves are certified to Class C — the most stringent class available — with a measured stem leak rate of ≤ 10⁻⁶ mbar·l·s⁻¹ over ≥ 150 mechanical cycles plus 15 thermal cycles. Class C certification satisfies US EPA Method 21, EU ATEX, and equivalent international fugitive emission regulations.
ASME B16.34 — Pressure-Temperature
ASME B16.34 is the parent standard establishing the pressure-temperature relationship for all steel valves. Every CARILO valve's pressure class is rated per the B16.34 tables for the specific body and trim material used — Carbon Steel (WCB/A105) and Stainless Steel (CF8M/F316) have different P-T curves, both documented on material certificates. Class 800 for NPS 1/2"–2" corresponds to PN130 (13.1 MPa) at ambient temperature.
NACE MR0175 / ISO 15156 — Sour Service
NACE MR0175 (now ISO 15156) governs material selection for equipment in sour service — environments where H₂S partial pressure exceeds 0.05 kPa or H₂S content exceeds 10 ppm. CARILO offers sour-service configured valves using 316L SS, 304L SS, and Alloy 825 with hardness verified on material certificates. Required for upstream Oil & Gas applications including wellhead Christmas tree valves, gas lift systems, and acid gas injection lines.
Documentation for Your Engineering Team
Access certifications, quality records, and product specifications to accelerate your procurement review.
CARILO VALVE
CERTIFICATIONS
API 6D, API 607, ISO 15848-2, ASME B16.34, NACE MR0175 — download full certification package with official seals and test reports.
Download PDFCARILO VALVE
QUALITY MANAGEMENT
ISO 9001 quality system documentation, inspection & test plans, NDT procedures, and traceability records for project compliance.
Download PDFCARILO VALVE
BALL VALVE CATALOGUE
Complete product range: three-piece ball valves, forged valves, casting valves, gate/globe/check valves — full specs, drawings, and material options.
Download PDFReady to Specify the Right Valve?
Whether you need a NPS 1/2" threaded valve for hydraulic instrumentation or NPS 2" butt-weld for steam service — our engineering team will confirm the exact configuration for your application.
Broader Industrial Use Cases
Beyond core applications, CARILO heavy duty small port valves serve a wide range of critical process and instrumentation roles across multiple industries.
- Steam & Condensate Systems — Thermal power plant steam tracing lines
- Chemical Processing — Acid, caustic, and solvent isolation in CPI plants
- Marine & Offshore — Saltwater service, ballasted water, cooling circuits
- Gas Distribution — Natural gas city gate stations and district regulator runs
- Mining & Minerals — Slurry isolation, reagent dosing, process water
Seat, Material & Connection Options
Configure the right valve for your service conditions. Below is a comparison of the most common configurations.
| Configuration | Soft Seat (PTFE/RTFE) | Metal Seat (Stellite/Overlay) | Carbon Steel Body | Stainless Steel Body |
|---|---|---|---|---|
| Max Temperature | ≤ 200°C | ≤ 400°C | Varies by seat & trim | |
| Seat Wear Resistance | Good — cyclic service | Excellent — abrasive media | Body material independent | |
| Tight Shutoff | ✓ Bubble-tight at low ΔP | ✓ High ΔP/thermal cycling | Seat-dependent | |
| Corrosion Resistance | Limited to compatible media | Good — overlay material | Standard atmospheric | Excellent — chlorides & acids |
| Fire-Safe Certified | ✓ API 607 required | ✓ Standard | Independent of body | |
| Typical Application | Steam, instrument air, oil | High-temp steam, GTG, reformer | General hydrocarbon service | H₂S, chloride, acid service |
| Connection: Socket Weld | ✓ | ✓ | ✓ | ✓ |
| Connection: Butt Weld | ✓ | ✓ | ✓ | ✓ |
| Connection: Threaded | ✓ | ✓ | ✓ | ✓ |
